Product details



GrandTiger G3

Diesel

Gasoline

4JB1VE pump

491Q-ME

Isuzu technology:
Isuzu engine 4JB1is the only authorized in the domestic market,  durable, reliable and strong environmental adaptability

Toyota technology:
Mature technology, large market in-used, stable performance.

High fuel efficiency power:
Germany Bosch advanced electronic control technology, higher combustion efficiency, 100 km fuel consumption is only 7L

Economic power:
Repair convenience, parts commonality, long service life, low cost of repair.



Engine Type

4JB1

491Q-MB

Form of Engine

Inline 4 Cylinder

Inline 4 Cylinder

Cylinder Bore×Stroke(mm)

93×102

91×86

Displacement

2.771

2.237

Rated Output(Kw/rpm)

75/3600

82/4600

Maximum Horsepower(ps)

102

111

Maximum Torque(N.m/rpm)

235/2000

200/2300-2800

Emission Standard

Euro III

Euro IV

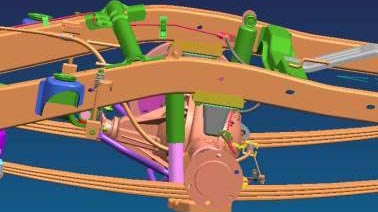

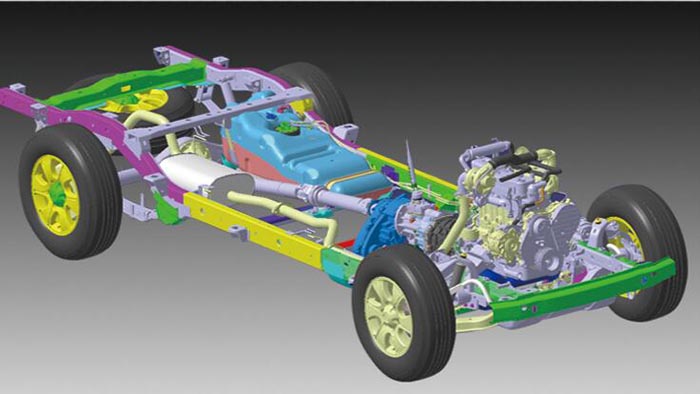

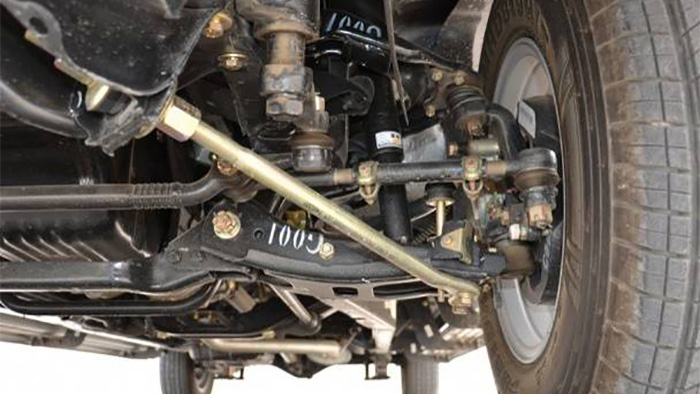

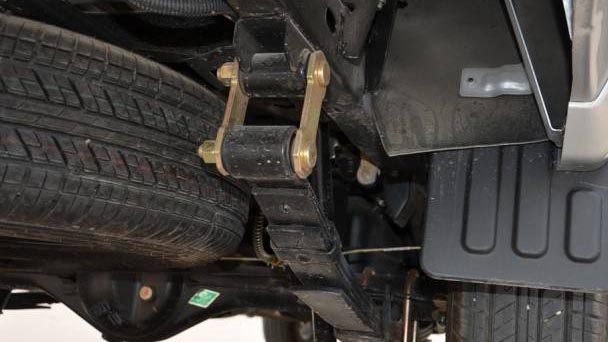

GrandTiger's enforced chassis adopt Toyota technology, the chassis is widen and thicken, the torsion bar is enforced, the thickening and widening of metal plate and spring, thus stronger load bearing capacity.

Good performance in accordance with US-NCAP and ANCAP standards in the pickup category



Dimensions

Model

491Q-ME Single

4JB1TI Single

491Q-ME Double

4JB1TI Double

Fuel Type

Gasoline

Diesel

Gasoline

Diesel

Body Dimension(mm)L×W×H

5080×1750×1735

5080×1750×1735

5080×1750×1710

5080×1750×1710

Cargo(mm)L×W×H

2180×1505×480

2180×1505×480

1400×1505×480

1400×1505×480

Wheelbase(mm)

2900

2900

2900

2900

Rated Loading Capacity(kg)

750

750

480

480

Min. ground Clearance (mm)

191

191

191

191

Min. turning Diametre (m)

≤12.5

≤12.5

≤12.5

≤12.5

Capacities

Seating Capacity(person)

2

2

5

5

Fuel Tank Capacity(L)

58

58

58

58

Transmission

Type

5MT

5MT

5MT

5MT

Tyre Size

225/75R15

225/75R15

225/75R15

225/75R15

Drive System

2WD

2WD

2WD

2WD



Specifications of ZX Grandtiger Pickup

Engine

XG491Q-ME

4JB1TI

Displacement(cc)

2237

2771

Emission Standard

Euro Ⅱ

Euro Ⅱ

Transmission

M/T

M/T

Drive Mode

2WD

2WD

Wheel

Aluminum wheel

Aluminum wheel

Tyre

225/75R15

225/75R15

Power Steering

ABS+EBD

——

——

Environmental A/C

Electrical Double Airbags

——

——

Remote Central Control Door Lock

Adjustable Steering Column

Single Disc CD system

Engine Tachometer

Outside Rear View Mirror

Power Mirror

Power Mirror

Power Window

Reversing Radar

Stainless Rail of Cargo

Pedal  step

Rear Bumper

TUV式

Wheel Eyebrow

Cargo

●Extra-long 1.4m

●Extra-long 1.4m

Plastic Paint Bedliner

High-mounted Brake Lamp

Foglamp

Glare-free Interior Review Mirror

Senior Fabric Seats
