Product details

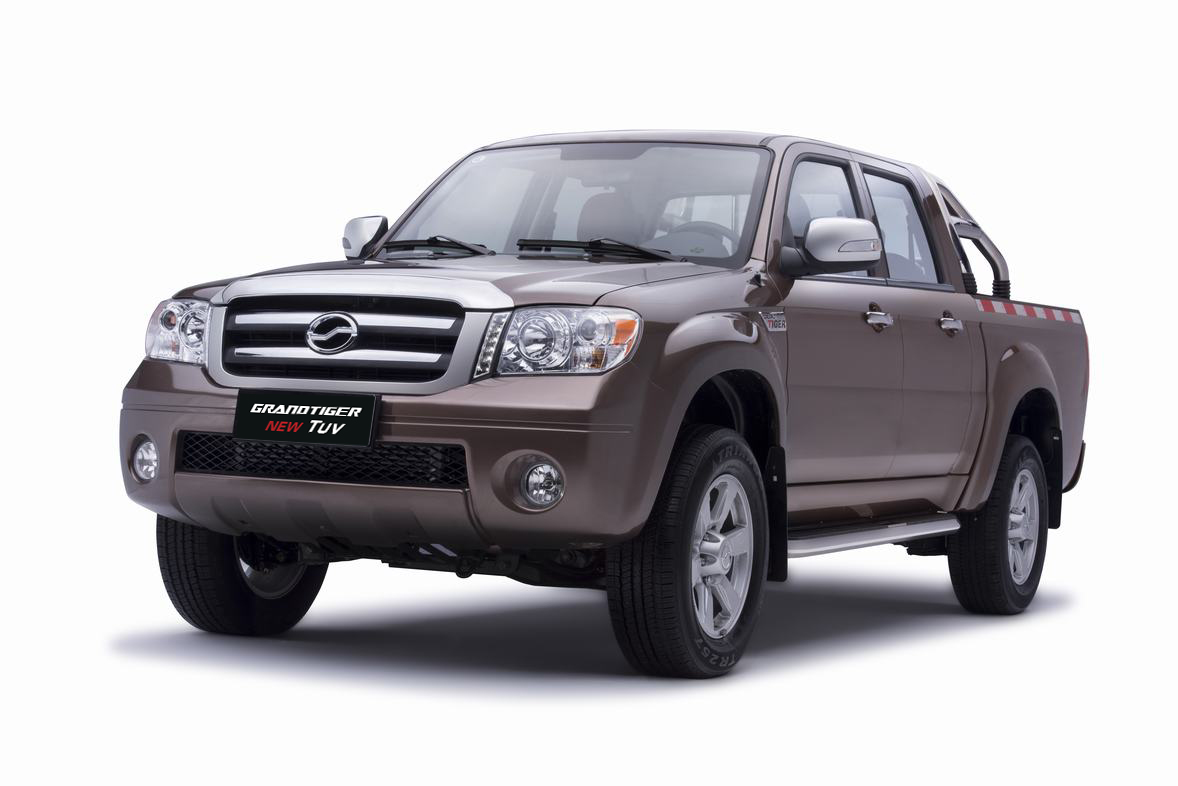

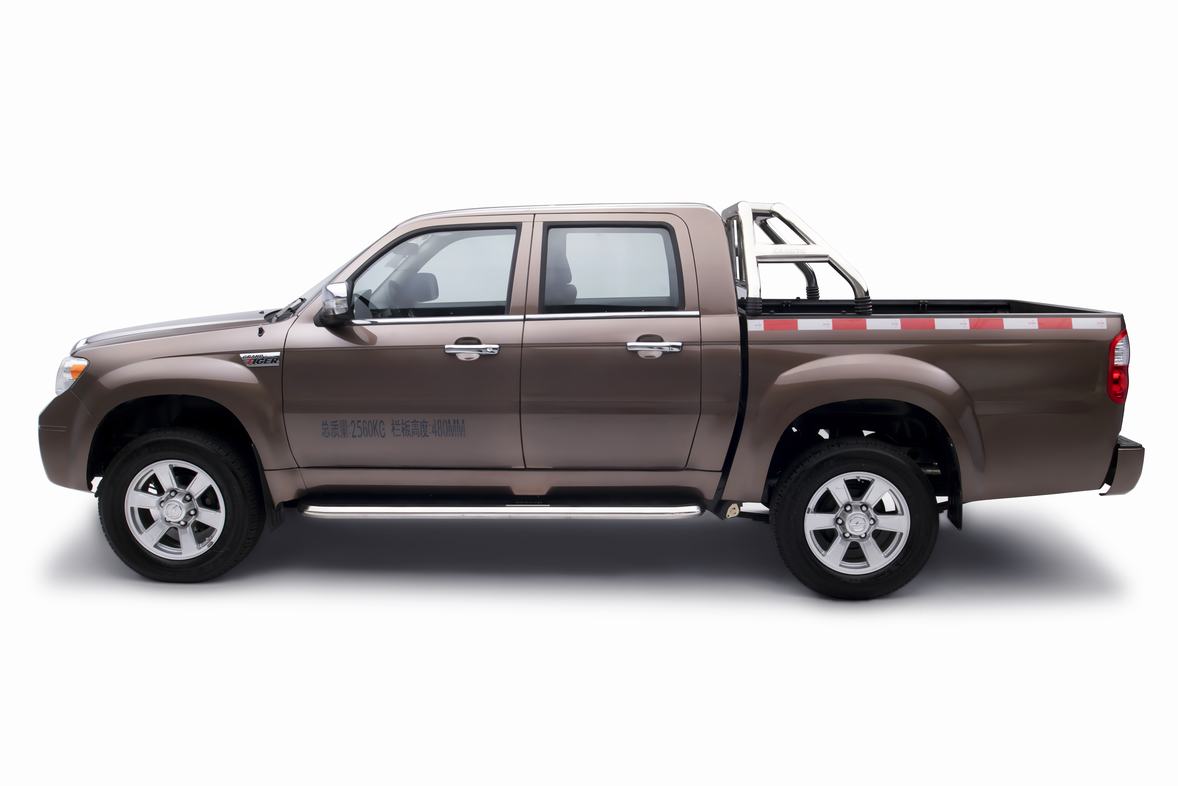

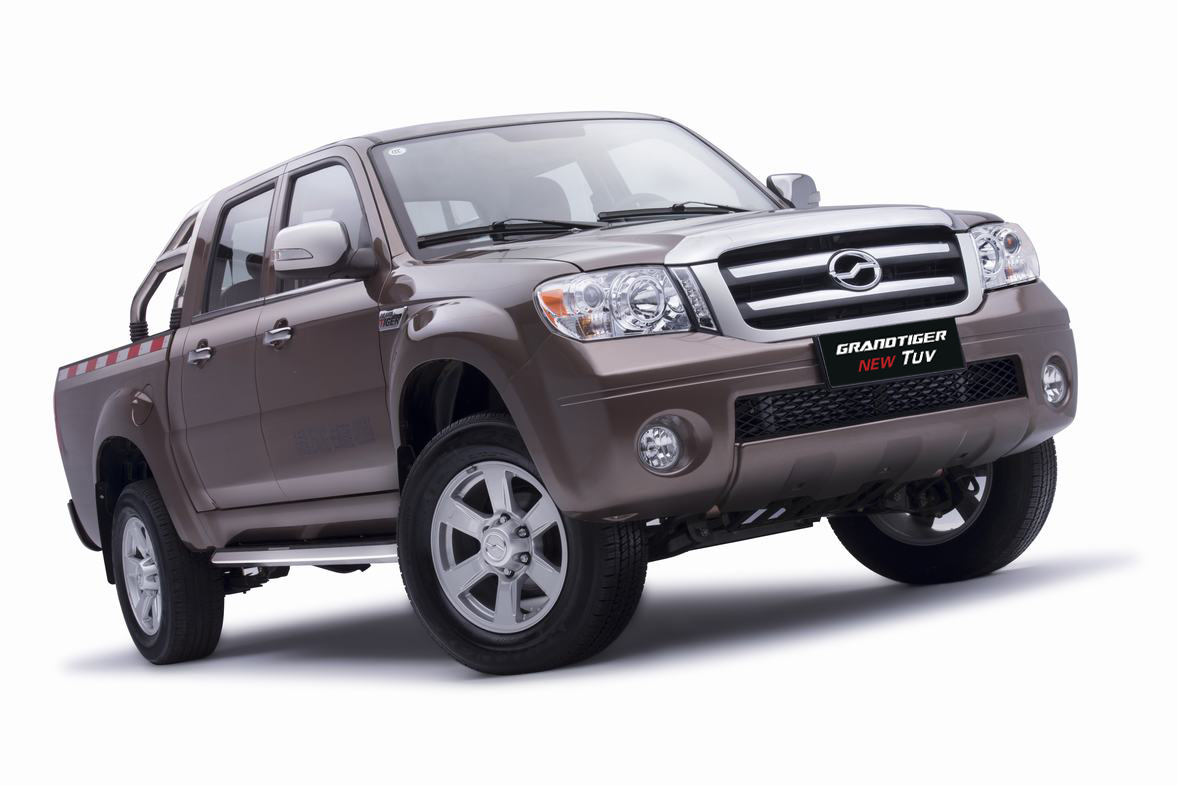

GrandTiger TUV exterior is in proportional ratio, chrome trimming decorations giving a high-grade look, using 245 large tires for better trafficability.
achieving Euro, US and Australia safety collision standards, in synchronize with Toyota Tundra pickup

Toyota technology dk4 2.5t power Bosch high performance

EDC16C39 common rall system,optimum control in fuel injection quantity,fuel injection time,injection pressure and injection rate,reallzing ideal injection regutarty through multiple injection in one cycle,assuring high fuel consumption effciency



Item

Parameter

Engine

Model

4G69S4N Gasoline engine

JE493ZLQ4CB Diesel engine

DK4 Diesel engine

Fuel Type

Gasoline

Diesel

Diesel

Power(Kw/rpm)

100/5250

75/3600

95/3600-3800

Torque(N·sm/rpm)

200/2500~3000

220(2000)

315/1800-2600

Displacement(L)

2.378

2.771

2.498

Structure

In-line、Four cylinders、Four-stroke

In-line four cylinders, four stroke,

In-line four cylinders, four stroke, water-cooling, ridge-type chamber

Max. speed(km/h)

≥140

≥130

≥145

type rocker            Reinforced torsion bar

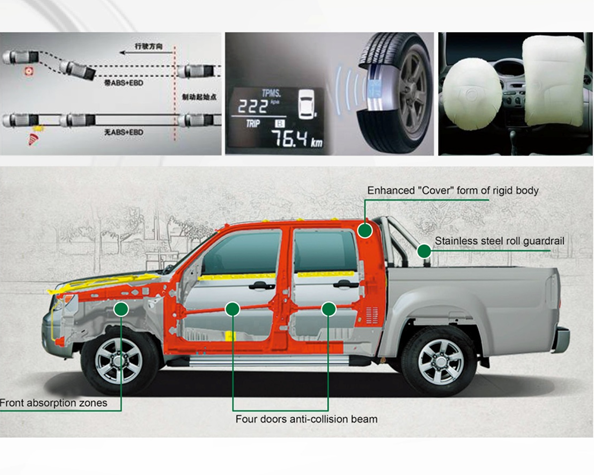

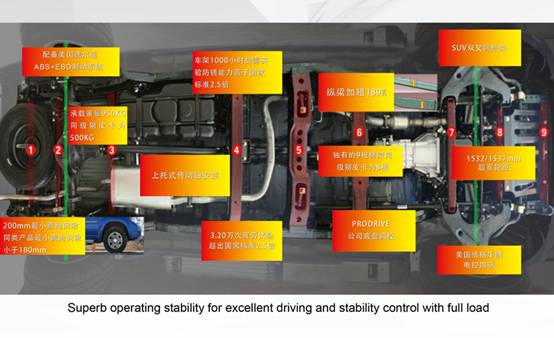

safety Front suspension with independent double wishbone call spring and rear suspension with dependent leaf-spring,Front disc rear drum brake system.BOSCH ABS+EBD,SUV chassis.Reintarced cabin frame.Safe drive with drive with Dual airtags+Engine protective panel+TPMS+Mobile internet.



Dimensions

Model

4G69S4N Gasoline engine

JE493ZLQ4CB Diesel engine

DK4 Diesel engine

Fuel Type

Gasoline

Diesel

Diesel

Body Dimension(mm)L×W×H

5310×1812×1800

5310×1812×1800

5310×1812×1800

Cargo(mm)L×W×H

1600X1505X480

1600X1505X480

1600X1505X480

Wheelbase(mm)

3100

3100

3100

Rated Loading Capacity(kg)

480

480

480

Min. ground Clearance (mm)

200

200

200

Min. turning Diametre (m)

≤13.5

≤13.5

≤13.5

Capacities

Seating Capacity(person)

5

5

5

Fuel Tank Capacity(L)

70

70

70

Transmission

Type

5MT

5MT

5MT

Chassis

Front Suspension

Dual Wishbone, torsion bar spring

Dual Wishbone, torsion bar spring

Dual Wishbone, torsion bar spring

Rear Suspension

Plate Spring

Plate Spring

Plate Spring

Front Braking System

Disk

Disk

Disk

Rear Braking System

Drum

Drum

Drum

Tyre Size

245/65R17

245/65R17

245/65R17

Drive System

2WD/4WD

2WD/4WD

2WD/4WD
